Sunrise and sunset alarm clock Bluetooth Speaker led wake up light with FM Radio

light up alarm clock​ Specifications:

Bluetooth Version: V4.1

Bluetooth Frequency: 2.4GHz

Transmission Distance: 10M Max

Rated Power: 3W x 2

Battery Capacity: 1800mAh

Material: ABS

Size: 168*110*160mm

dawn simulator alarm clock​ Function:

Sunrise simulation wake-up light

Sunset simulation sleep light

Warm white LED Light

Color Charge Light

LCD display

Alarm Clock

Sleep function

Snooze function

Hands-Free function

TF card Slot

FM scan radio

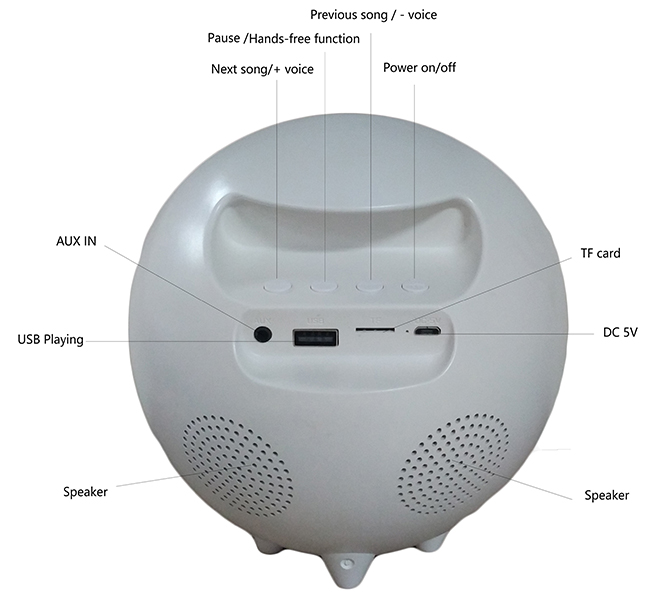

Power On/OFF

1. Long press this button for power on or off

2. Long press for reducing the item voice, it suitable for all mode

3. Short press for changing to previous song, only for BT, AUX IN, USB, TF mode. (When use the USB

playing function, this display will show “TF’’ mark)

Hands-free function:

1. When the item already connected Bluetooth by your cell phone, short press this button to answer the

phone

2. When the alarm goes off, short press this button for close the alarm clock function

3. When playing music by Bluetooth/TF/USB/AUX, short press this button for pausing the music.

4. Long press for increasing the item voice, it suitable for all mode

5. Short press for changing to next song, only for BT, AUX IN, USB, TF mode. (When use the USB playing

function, this display will show “TF’’ mark)

Time display

1. Long press this button for changing time format of 12-hour and 24-hour; Short press it for setting of time;

2. The default setting for the boot time is 24 hours. In standby mode, press this button for the first time from

24 hours to 12 hours System, long press this button to switch back to 24-hour system;

3. Short press this button in standby mode to enter the time setting mode, Complete setting through

pressing “+” “-” (up and down), short press this button to confirm the setting.

4. The time display is the main function. In the BT/FM/AUX/TF mode, the current mode content is displayed

for 5 seconds and then it is automatically converted to time display.

Alarm Clock

1. Long press this button to access to turn off /turn on alarm function, when the alarm goes off, short press

to close the alarm bee ring;

2. Standby mode, short press it to enter alarm time setting mode, press it to confirm the current setting.

Wake-up light:

1. Wake-up light is associated with alarm clock function, warm white light will turn on in 30 minutes from

the set alarm time automatically, brightness is the weakest model, gradually lighten up from the weakest

brightness to warm white 100% brightness within 27 minutes, and turn to the warmest white light with the

weakest brightness from the alarm clock for 3 minutes.

2. Within 3 minutes, gradually lightens from the weakest brightness to 100% brightness when the alarm

goes off. If there is no operation, the alarm will continue for ringing 5 minutes, and then alarm bell ring

is closed and enters Snooze Mode automatically, but wake-up light will keep the brightness.

3. when Power on, the default alarm off, long press this button in standby mode to turn on the alarm for the

first time, the alarm sign appear, display the alarm clock time 3 seconds (The first time to use the default

alarm clock time is 00:00. After the alarm time has been set, the default alarm clock time is on once set

the time, press this button again to turn off the alarm and the alarm sign is off.

4. In standby mode, short press this button to enter the alarm time setting mode, Complete setting through

pressing “+” “- “(up and down), short press this button to confirm the setting. (The default start time for

the first time use is 00:00. After the alarm time has been set, the default start time is the last time setting);

5. When the alarm time comes and goes off, short press this button to close alarm bell ring, but do not turn

off the alarm function;

6. When the alarm time comes and goes off, if there is no operation, the alarm will continue for ringing 3

minutes, and then enter snooze mode automatically;

Down

1. When turn on the white light function, short press this button for lower brightness of White light;

2. When turn on the Colored light function, short press this button for change the color of Colored light;

3. When turn on the alarm clock setting or time setting, short press this button for down time.

White light

1. Short press this button to turn on the white light and colored light mode switch, in order to turn on the

white light - turn on colored light - turn off the light;

2. When sleeping light is on or the Snooze light is on, press this button to turn off the light;

Snooze Function

When the alarm goes off, short press it, it starts snooze function, the alarm sounds is paused and

wake-up light is turned off, and the alarm clock will goes off again after 9 minutes...

Up

1. When turn on the white light function, short press this button for increasing brightness of White light;

2. When turn on the Colored light function, short press this button for change the color of Colored light

3. When turn on the alarm clock setting or time setting, short press this button for up time.

Sleeping light

1. Short press it to enter the length of time to sleeping light selection, duration of three modes to choose

from: 30 minutes / 60 minutes/90 minutes, the warm white light is turned on after the sleeping light is

on, and then the sleeping light countdown starts.

2. Sleeping light, 30 minutes before the end of Sleeping time, the Warm white light intensity gradually

weakens from 100% light, and the Light will be turned off at the end of sleeping time; at this time, if

Bluetooth audio or FM radio are working, they will be also turned off when sleeping time finished.

MODE, namely BT/FM/AUX/TF/OFF AUDIO

Initially, the mode is OFF AUDIO mode, Bluetooth function and FM function is not working,

but the TF or AUX is working when inserted the TF card or LINE IN automatically, TF is preferred.

Bluetooth function:

Press this button to change to BT mode, and then searching Bluetooth pairing name “S-73” for connect

FM radio function: Automatic searching

Deadlock: When all the buttons do not work, the software may bug due to software conflicts. At this time,

you can press the RESET button to restart. The RESET button is locate in the LINE IN hole.
